Description
TYPE: Automatic bundling and overwrapping machine.

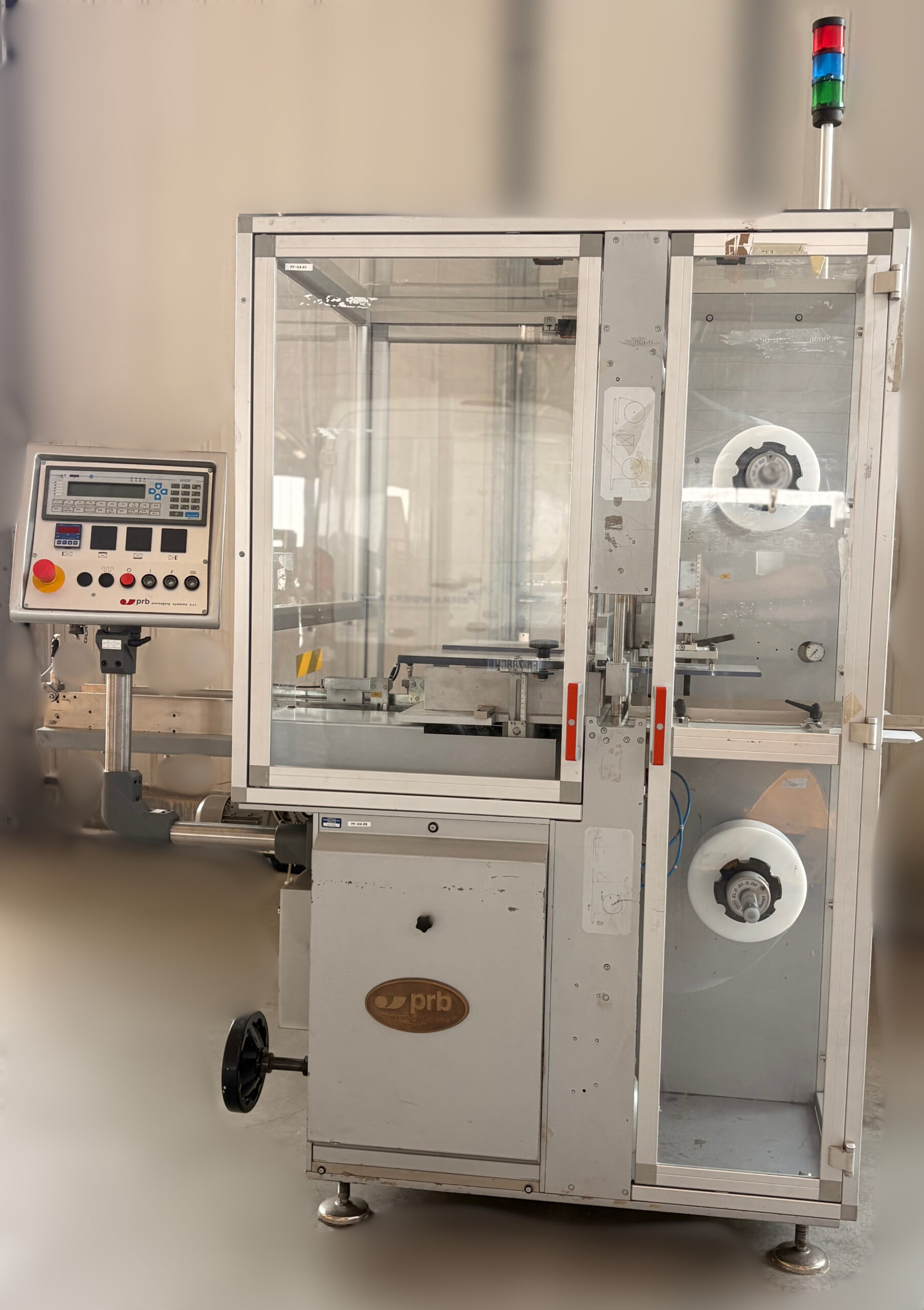

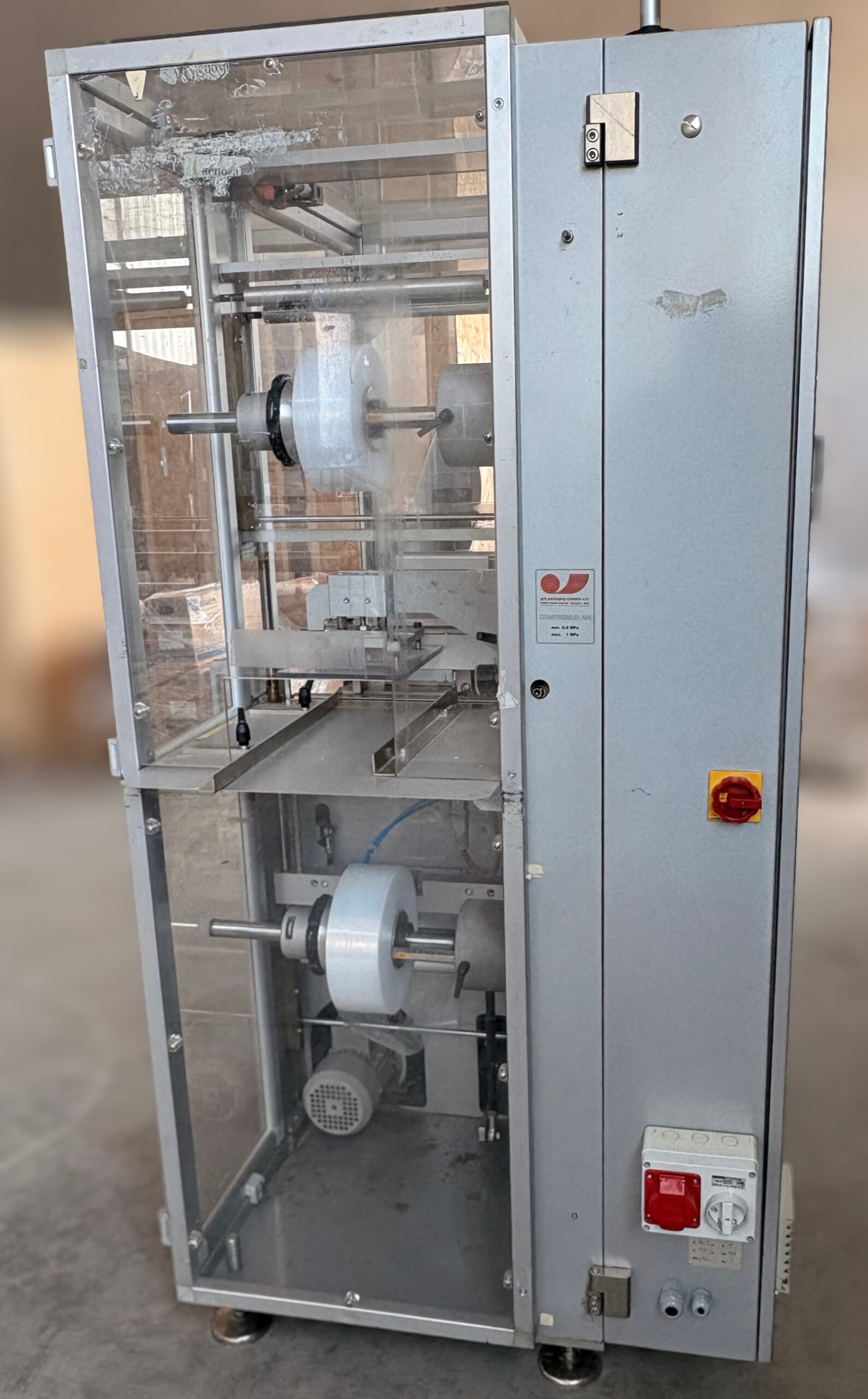

KEY FEATURES:The PRB FAR 3001 is a compact linear automatic bundling machine designed for secondary packaging and stacking of cartons using welded plastic film. The unit features a dual reel holder system for top and bottom film feeding, alongside clear safety guards that ensure process visibility and operator protection. The adjustable control panel with UniOP HMI interface allows quick parameter settings and format changeovers.
TECHNICAL FEATURES:

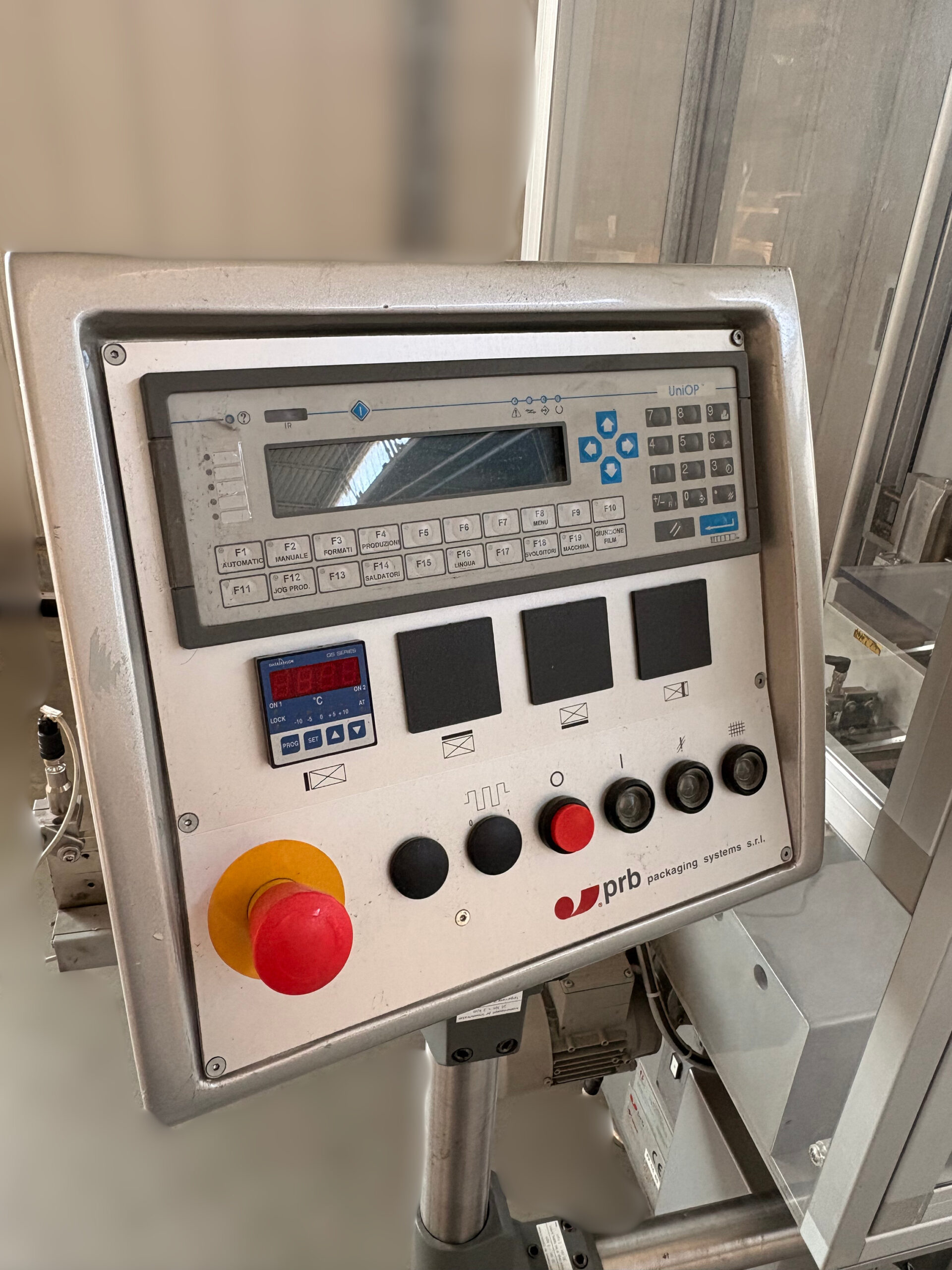

Operator panel: UniOP HMI screen with dedicated membrane keyboard
Temperature control: digital temperature controller integrated into the main console
Power supply: 400 V / 3 Phase / 50 Hz

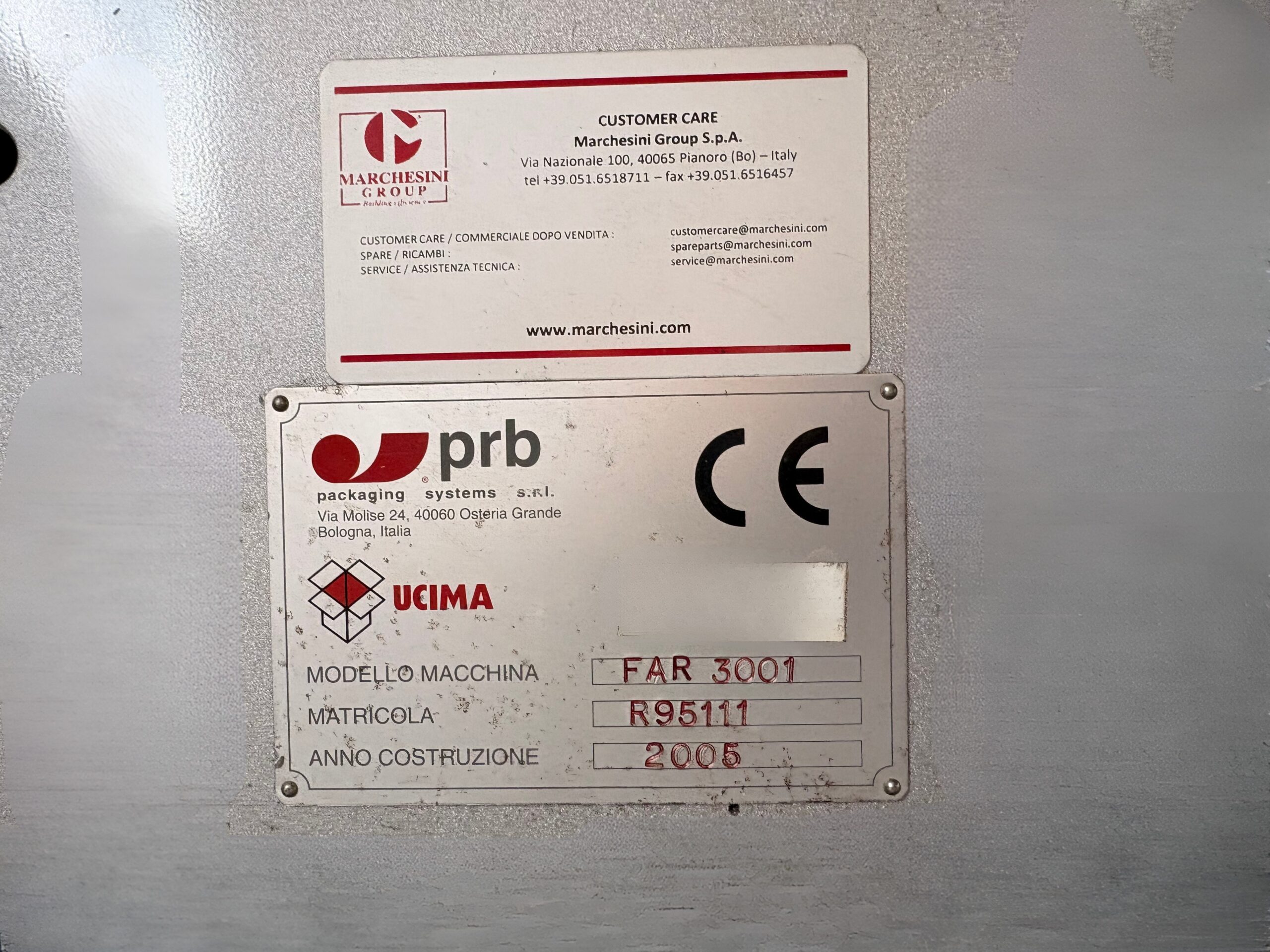

Pneumatic working pressure: Min 0.6 MPa – Max 1.0 MPa (as certified on the technical plate in bundling-machine-prb-far-3001-used-1.jpg)
Safety features: coded magnetic switches on doors and quick-reach emergency stop buttons
PRODUCTION SPECIFICATIONS: Up to 30 bundles/minute (depending on product sizes and collation setup)
