Description

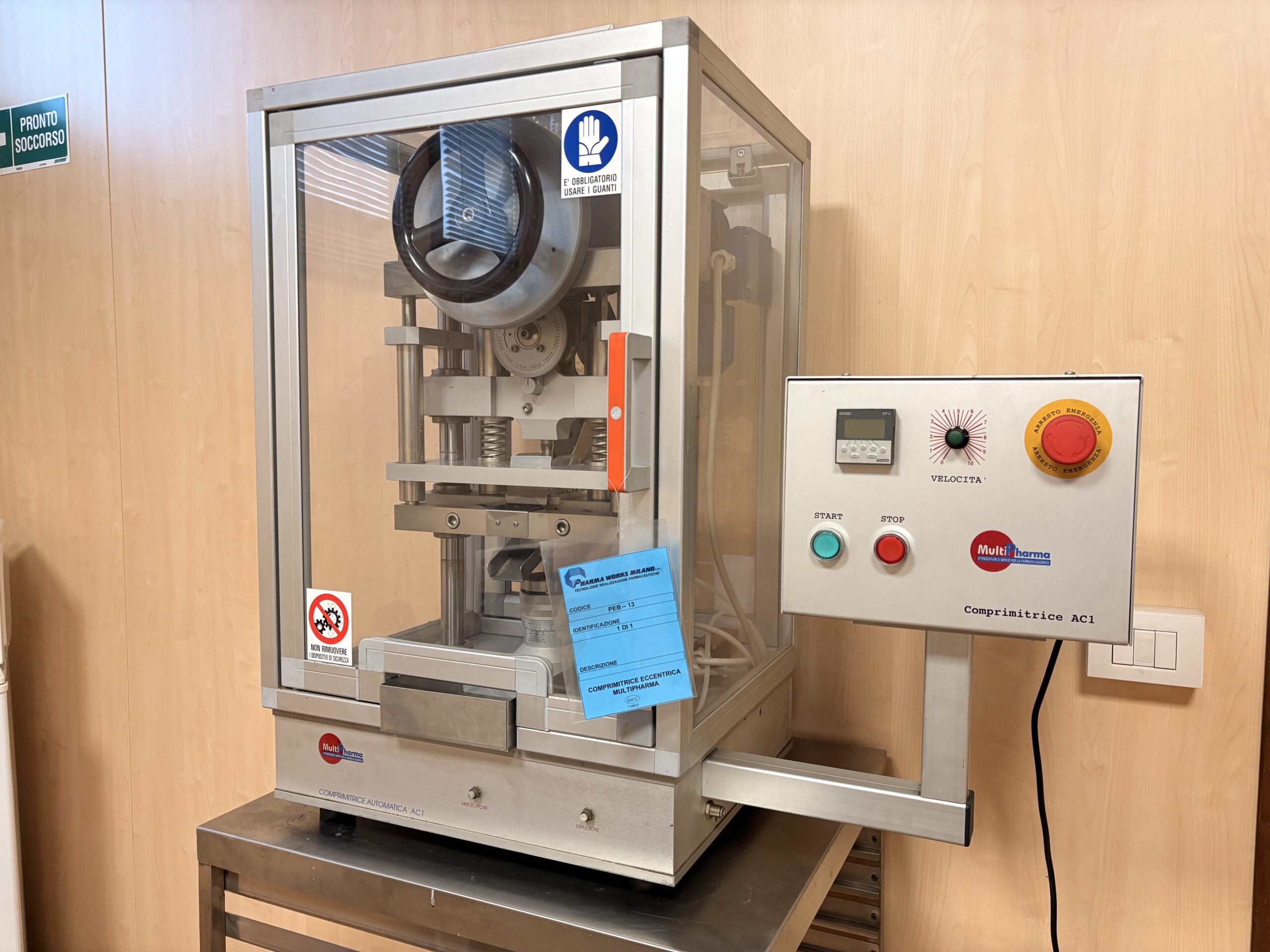

TYPE: Automatic laboratory tablet press for converting powders into tablets. The machine operates as a single-station eccentric press, allowing precise control of powder dosage and compression force, and is suitable for use in pharmaceutical and galenic laboratories. It has a compact structure, is easy to operate and maintain, and provides direct access to the main mechanical components with safety protections compliant with CE directives.
KEY FEATURES: The AC-1 tablet press is designed as a compact laboratory machine intended for formulation trials, R&D activities and small-scale production, with a simple setup that allows the operator to work quickly and under control.
TECHNICAL FEATURES:
Tablet diameter range 6 to 16 mm
Maximum compression force:45 kN (≈ 4,500 kg)
Maximum powder fill depth 35 mm
Indicative production up to 3,000 tablets per hour
Weight: 120 kg
Power supply 220 V – 50 Hz
Power consumption 650 W
Operational guards and safety devices compliant with CE standards
Includes punches Ø 12 mm and Ø 16 mm (8 mm incomplete)
CE
PRODUCTION SPECIFICATIONS: The machine is designed for an indicative production capacity of up to 3,000 tablets per hour, which may vary depending on tablet diameter, required hardness and powder flow properties.
