Description

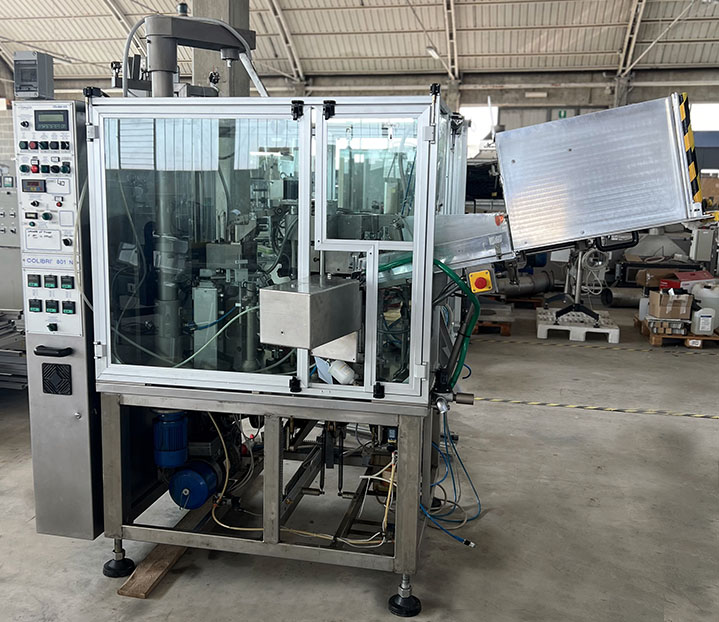

TYPE: Automatic rotary-table tube filling machine for plastic tubes, with automatic tube feeding, tube orientation and controlled volumetric product dosing.
KEY FEATURES: Automatic tube feeding and orientation system equipped with a “No Tube – No Fill” sensor to prevent empty filling. Filling station with adjustable volumetric dosing pump followed by hot jaws sealing of the tube.
TECHNICAL FEATURES:

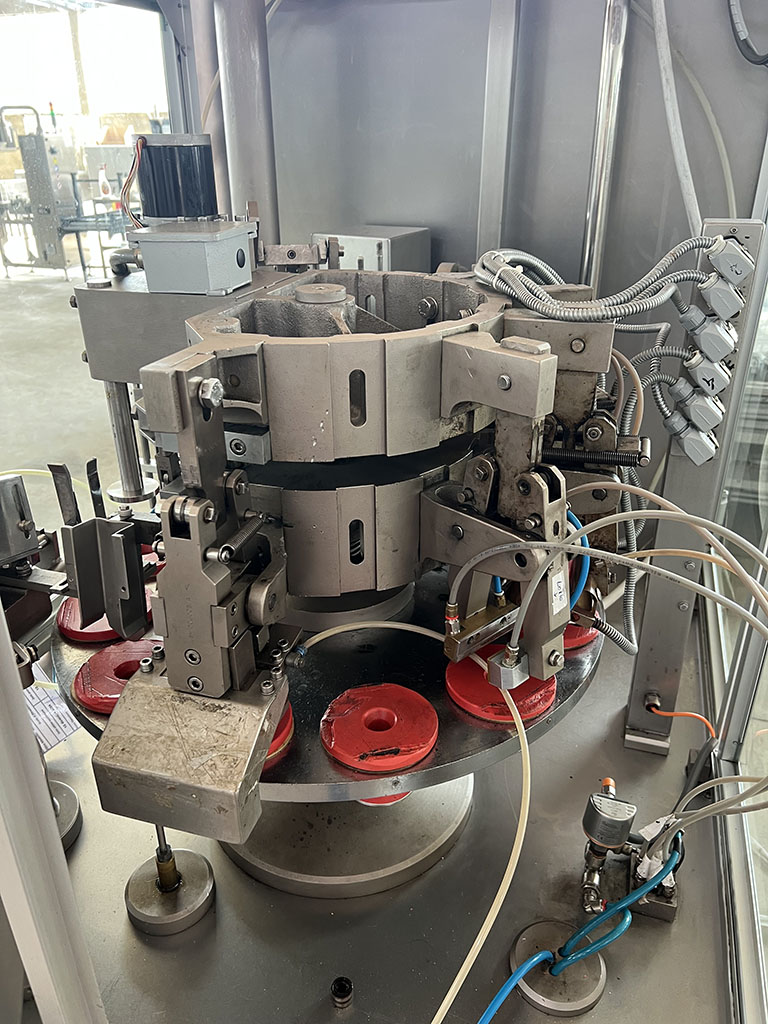

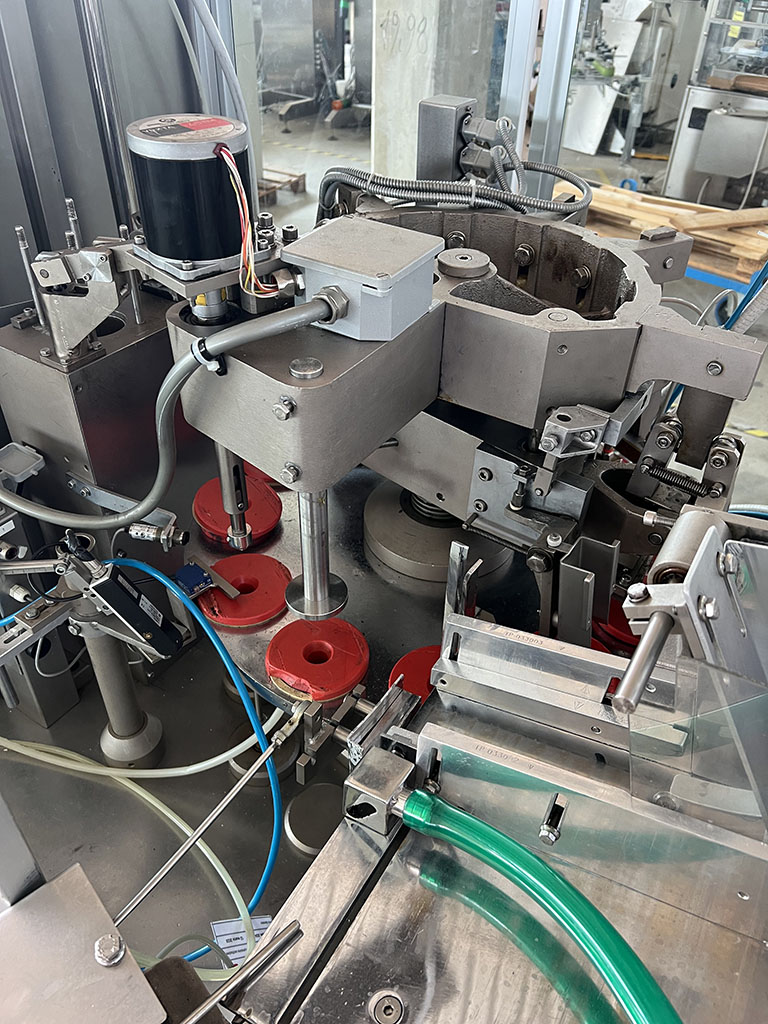

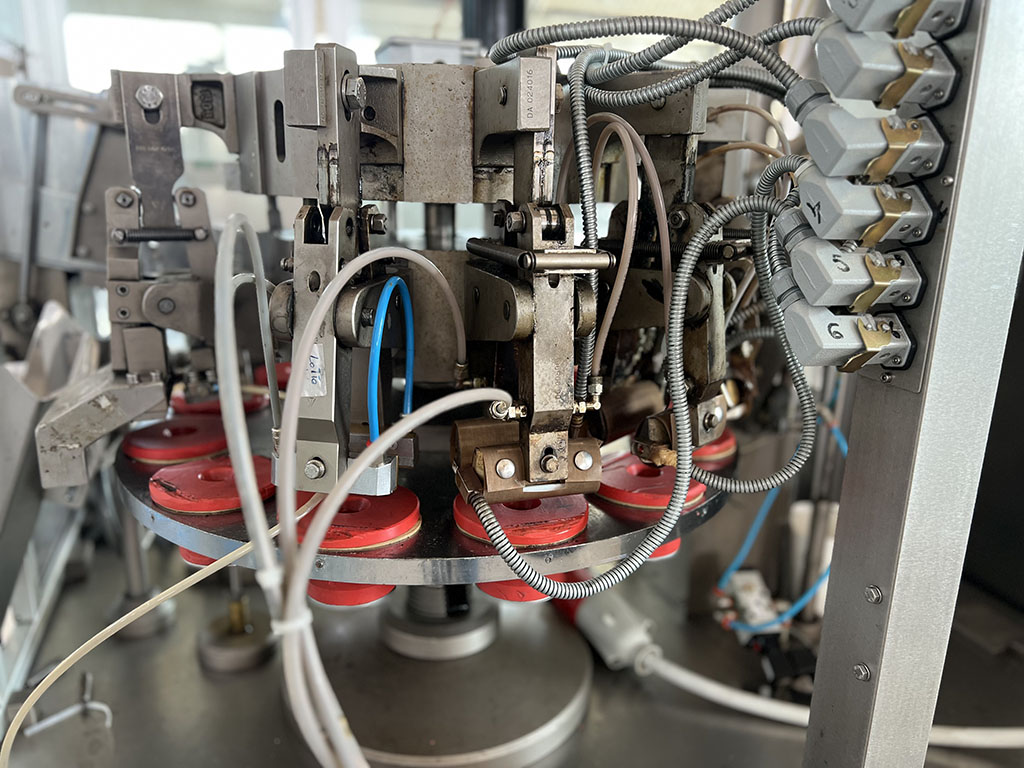

12-station rotary table

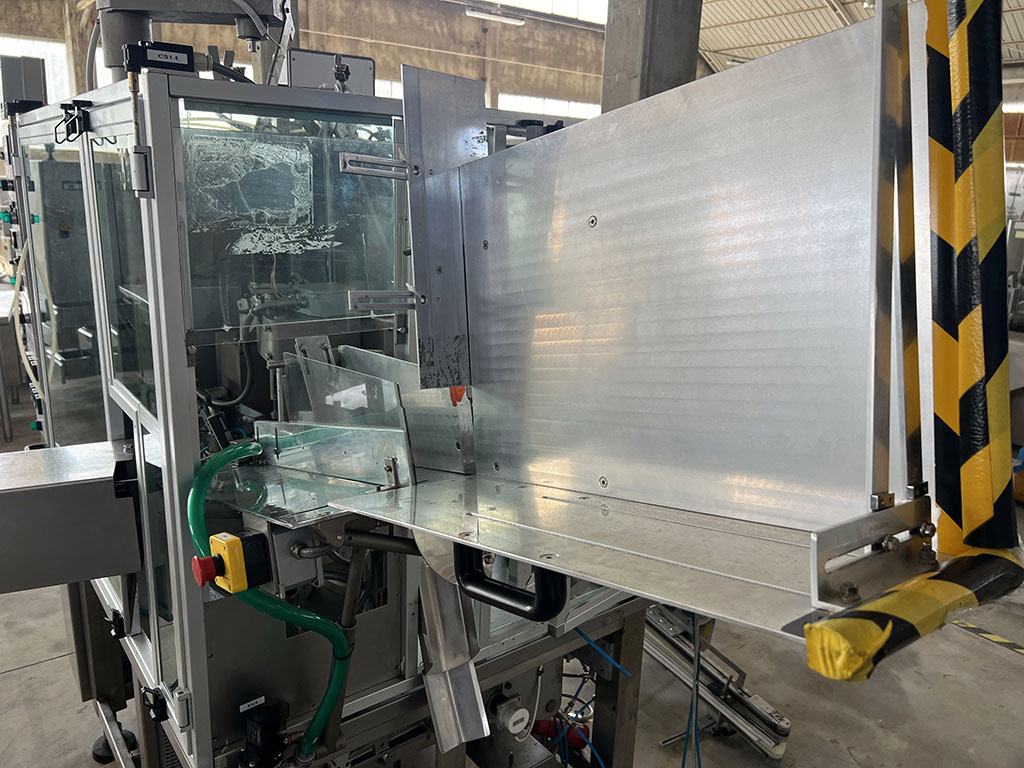

Automatic tube feeding with orientation system
“No Tube – No Fill” sensor
Adjustable volumetric dosing pump
Final hot jaws sealing of the tube
Stainless steel product hopper
Tube diameter range approximately 10–50 mm
Tube length up to approximately 200 mm
Indicative filling range approximately 3–390 ml
PRODUCTION SPECIFICATIONS: Indicative output up to approximately 80 tubes per minute, variable depending on tube format and product characteristics.
